SHOWER DRAIN KT 1100 GPH

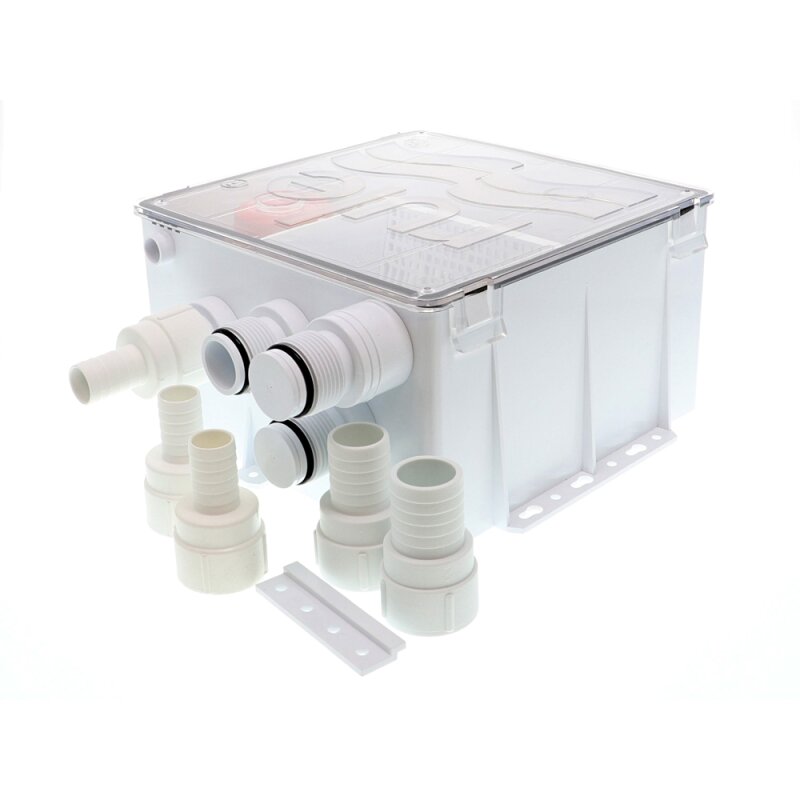

Rule 99B-24 - Rule Multi-Port Shower Drain System, 1100 GPH, 24V

• Multi-port shower drain box with 1 inlet and 3 outlet ports, Rule-A-Matic float switch and 1100 GPH submersible pump
• Pump, float switch and debris strainer can be removed for maintenance
• Capacity at 27V straight max 70 l/min; at 2m (6 ft) head max 52 l/min
• Amperage 2,2A; fuse size 4A
• Including ports: 3 x 19mm (3/4"), 1 x 25mm (1"), 1 x 29mm (1-1/8") inlet
• Dimensions: Length ca. 21,5 cm (ca. 31,0 cm with ports) / width ca. 23,9 cm / height ca. 14,0 cm
• Replacing Rule 99A-24

A compact, full-capacity shower drain system. Automatically turns on after the water starts and shuts off when the water is removed. Activated by a non-mercury Rule-a-Matic float switch. Available with one or three inlet ports which offer varying combinations of inlet hose. Other features include a clear screw-down cover, a removable strainer for easy cleaning and an internal check valve to prevent back flow.
